atvise® connect X
High-performance data acquisition for industrial applications.
We connect to anything

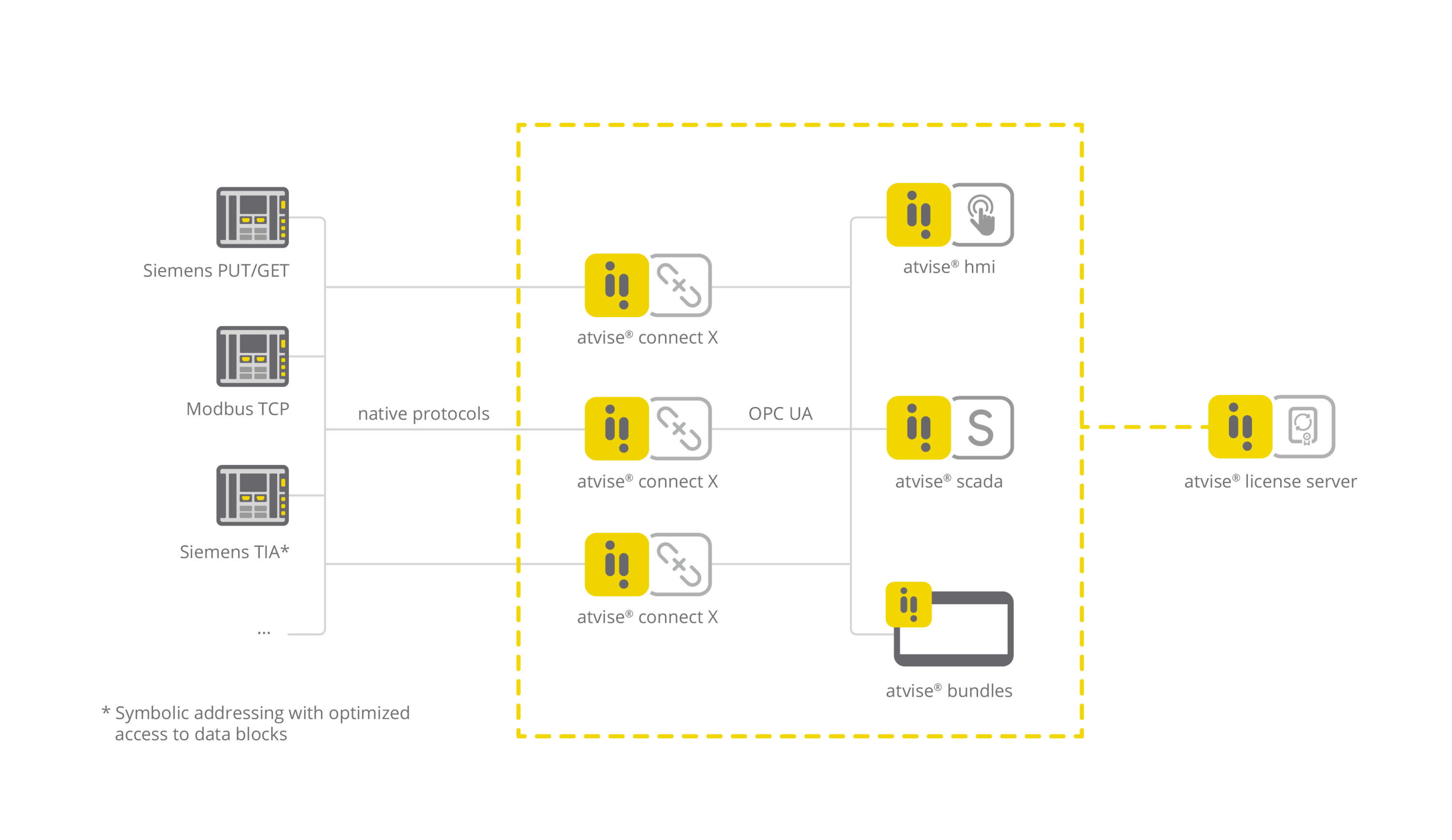

Implemented as a scalable and OPC-UA-capable multi-protocol server, atvise® connect X expands the communication interfaces of atvise® hmi and atvise® scada. With our driver solution, we provide connectivity with a wide range of industrial controllers and ensure top level performance in industrial data acquisition.
All benefits at a glance
The benefits of atvise® connect X
With support for Siemens S7 controllers, including symbolic addressing, optimized data blocks, and online browsing, as well as Modbus TCP clients. Modern documentation & CRA-ready.
Can be combined as desired with atvise® hmi, atvise® scada and our atvise® bundles. Optional licensing available through the atvise® license server.
With Online Engineering, new controllers can be connected at runtime. Automation tasks can be implemented using import files and OPC UA methods.
An integrated browse functionality allows for data structures to be imported directly. Direct addressing allows for engineering directly from the atvise® Builder.
atvise® connect X scales from very small applications to large applications with 1,000,000 connected data points.
Diagnostic nodes, connection and project information, communication statistics, and OPC UA-compliant status codes assist with commissioning, connection issues, and troubleshooting.
A driver solution with many interfaces
atvise® connect X can interface with the following controller types and protocols:
From v1.0:
- Siemens (S7 300, 400, 1200, 1500)
- Modbus TCP
From v1.1:
- MQTT
From v1.2:
- Rockwell (CompactLogix, ControlLogix, Micro8)
atvise® product portfolio
These solutions can be expanded with atvise® connect X
