Requirements for the hardware

Due to the scalability of atvise®, the hardware requirements strongly depend on the implemented application. To provide an overview of possible project sizes, we have put together some reference examples.

1 / 4

IoT Edge Device

  • 2 data sources, 2 web clients
  • 15,000 process variables in the project
  • 6,000 value changes/minute
  • 3,400 historized raw values
  • 600 script calls/minute
topologie_atvise_Systemanforderung_IoT_Edge_Device_rgb_1420x1160px_web

Local HMI

  • 4 data sources, 4 web clients
  • 30,000 process variables in the project
  • 6,000 value changes/minute
  • 6,800 historized raw values/minute
  • 1,200 script calls/minute
system_requirements_hmi

Plant visualization

  • 10 data sources, 20 web clients
  • 150,000 process variables in the project
  • 45,000 value changes/minute
  • 24,000 historized raw values/minute
  • 6,000 script calls/minute
system_requirements_plant

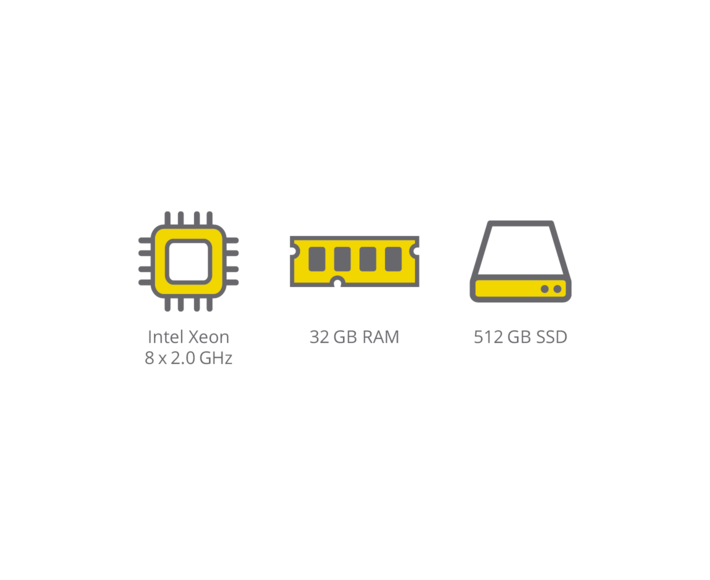

Higher-level monitoring

  • 100 data sources, 100 web clients
  • 1,000,000 process variables in the project
  • 120,000 value changes/minute
  • 60,000 historized raw values/minute
  • 12,000 script calls/minute
system_requirements_supervisory_control

Supported operating systems

Windows

Supported by:

Operating systems

32-Bit

64-Bit

Windows 10 IoT Enterprise
Windows 10 Pro
Windows 10 Enterprise
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019



Linux

Supported by:

Operating systems

32-Bit

64-Bit

Ubuntu 16.04 LTS
Ubuntu 18.04 LTS
Ubuntu 20.04 LTS
Debian 9.5 ARMv7
Debian 10 ARMv7

Supported browsers

Supported by:

Desktop Devices

 Browser

Version

Chrome

> 93.x

Chromium

> 93.x

Edge

> 93.x

Firefox ESR

91.x

Firefox

> 92.x



Mobile Devices

 Browser

Version

Chrome

> 93.x

Firefox

> 92.x

Safari

> 14.x

References

Supported operating systems

The information on this page is valid for atvise® 3.7. Windows 10 and Ubuntu 20.04 LTS are fully tested in the product tests of atvise® 3.7. These platforms are recommended for the operation of atvise® 3.7.

Supported Web Browsers

The information on this page is valid for atvise® 3.7
