Vibration-based monitoring

When atvise® scada is used accordingly, a wide range of parameters and data are available to carry out trend analyses based on the statistical properties of the available data. The greater and more consistent the data, the more precise the results in terms of maintenance, machine availability and production quality. For this reason, a crucial component has now been added to the system: Namely, condition monitoring by measuring vibrations. By adding vibration-based data, the user now has access to further important information about the condition of mechanical parts, the machine or system.

Increase in machine availability and production quality

Goal - Smart Maintenance

ready_to_use
Standard components with sophisticated software

A combination of Bachmann control components, sensors and atvise® scada with corresponding, ready-made software forms the basic toolkit for condition monitoring.

extendability
From standalone to fleet management

Whether a single machine part or a large number of systems with several hotspots are to be monitored and compared - the system scales as required.

proven_solution
Standards as a benchmark

The solution is based on ISO 20816 - ‘Mechanical Vibration - Measurement and evaluation of Machine Vibration’. This standard defines how values based on machine vibrations provide information about the vitality and future behaviour of the machine.

icon_schwingung_vibration_rgb
Vibration analysis

The integration of know-how-based threshold alarming, which now also includes vibration information, as well as the historicization of RMS values, alarms, etc., allows well-founded conclusions regarding machine and system status.

The solution as a multi-level toolset

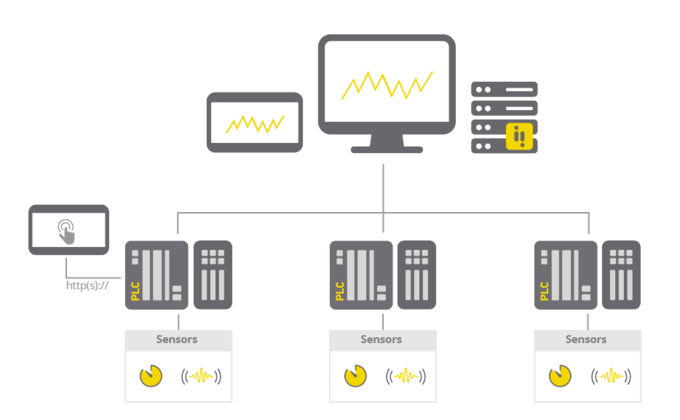

The entry-level offers a basic toolkit for condition monitoring for local observation of individual devices through fleet monitoring, online or offline, also as a cloud solution (OEM) with atvise® scada. For those aiming for a final expansion stage with online high-end condition monitoring with predictive maintenance up to ‘Life Time Extension’, we offer a Bachmann Monitoring solution in the next step.

atvise goes ConditionMonitoring_en

Another step toward autonomy

With atvise® Condition Monitoring, we are offering another component to counteract demographic change. What used to be done by experienced machine operators with many years of expertise is now made possible by the new atvise® basic toolkit for condition monitoring. With the appropriate process expertise, the solution can provide relevant information for the user based on a variety of data and algorithms over a certain learning curve.

AdobeStock_262414397_lichtpunkt_bearb

Have we sparked your interest? Then please fill out the form...

We would be happy to present our atvise® condition monitoring solution to you in person. If you already have a specific application in mind, we will be happy to analyze it together with you and make suggestions for a suitable implementation.
